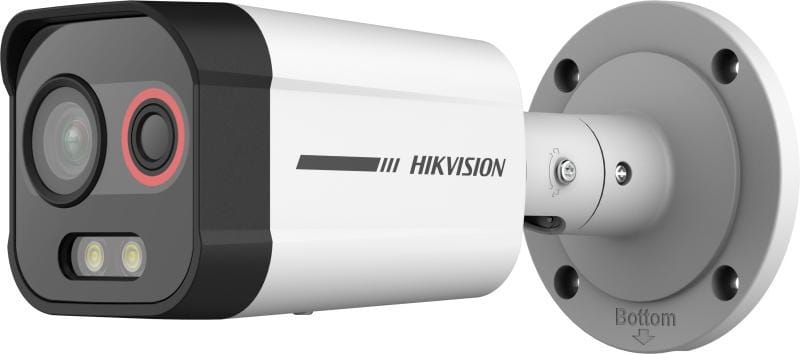

DS-2TD2608-2/QA | Hikvision 2.6mm Thermal Optical Bi-spectrum Network Bullet Camera
- Regular price
- R 6,285.95
- Regular price
-
- Sale price
- R 6,285.95
Couldn't load pickup availability
Details
- Availability: In Stock
Description
DS-2TD2608-2/QA
Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera
- 96 × 72 resolution, 12 μm, VOx UFPA, NETD < 55 mK (25°C, F1.0)
- Video content analysis: vehicle / human classification
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
| Category | Specification |
|---|---|
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 96 × 72 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | < 55 mK (25 °C, F1.0) |
| Focal Length | 2.6 mm |
| IFOV | 4.62 mrad |
| Field of View | 25.0° × 18.75° (H × V) |
| Min. Focusing Distance | 0.05 m |
| Aperture | F1.0 |
| Digital Zoom | x2, x4 |
| Optical Module | |
| Image Sensor | 1 / 1.8″ Progressive Scan CMOS |
| Resolution | 2688 × 1520 |
| Min. Illumination | 0.0005 Lux @ F1.0, AGC ON / 0 Lux with Light |
| Shutter Speed | 1 s to 1 / 100,000 s |
| Focal Length | 6 mm |
| Field of View | 56.0° × 30° (H × V) |
| Aperture (Range) | F1.0 |
| WDR | 120 dB |
| Image Effect | |
| Target Coloration | Supported in white hot and black hot mode |
| Illuminator | |
| Light Supplement | Warm Light |
| Supplement Distance | 30 m |
| Audible and Visual Alarm | |
| White Light Range | Up to 30 m |
| Visual Alarm | White light with adjustable flashing frequencies |
| Audio Alarm | 1 preset voice alerts 6 importable user-defined voice alerts |
| Smart Function | |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, region exiting) / Up to 8 VCA rules |
| Video and Audio | |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) / 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) / 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265 / H.264 Sub-Stream: H.265 / H.264 / MJPEG |
| Audio Compression | G.722.1 / G.711ulaw / G.711alaw / MP2L2 / G.726 / PCM |
| Network | |
| Protocols | IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP, SSL |
| Network Storage | MicroSD / SDHC / SDXC card (up to 256 GB) local storage, NAS (NFS, SMB / CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, third-party management, Open Network Video Interface (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User / Host Level | Up to 32 users / 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+ Local service : Chrome 57.0 +, Firefox 52.0 + |
| Interface | |
| Alarm Input | 2 alarm inputs (0 to 5 VDC) |
| Alarm Output | 2 alarm outputs (configurable actions) |
| Alarm Action | Linkage Methods: Recording (memory card, network storage, pre-record and post-record), captured pictures uploading (FTP, SFTP, HTTP, NAS, Email), notifications (HTTP, ISAPI, alarm output, Email) |
| Communication Interface | 1 RJ45 10 M / 100 M self-adaptive Ethernet interface |
| General | |
| Web Client Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Supply | 12 VDC ± 25%, φ 5.5 mm coaxial power plug |
| Power Consumption | PoE (802.3af, class 3) 12 VDC ± 25%: 0.7 A, Max. 8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W |
| Working Temperature / Humidity | Temperature: –40 °C to 65 °C (–40 °F to 149 °F) Humidity: 95% or less |
| Protection Level | IP67, TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing |
| Dimensions | 211.5 mm × 105 mm × 105 mm (8.32″ × 4.13″ × 4.13″) |
| Weight | 869.2 g (1.92 lb) |
